Name: Wideband 6 GHz Asymmetrical 90 Horn Antenna
Brand: Famous
Price: 1 USD

Brand Name : Famous

Model Number : Horn Antenna

Certification : CE，ISO9001

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T ， L/C

Packaging Details : Standard export packaging/customizable packaging

Name : Symmetrical Horn Antenna

Frequency Range : 4900-7200 MHz

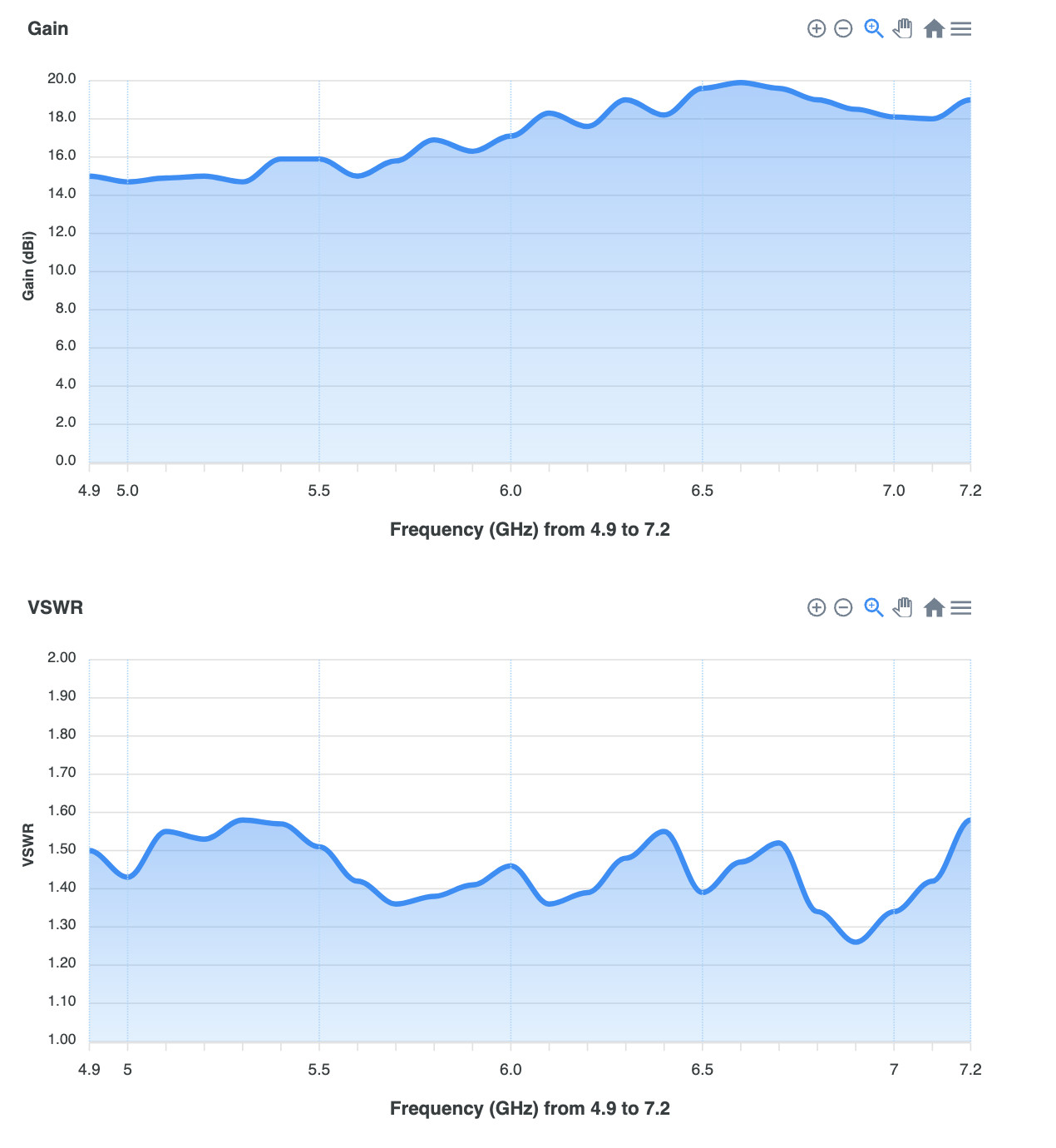

Gain : 18 dBi

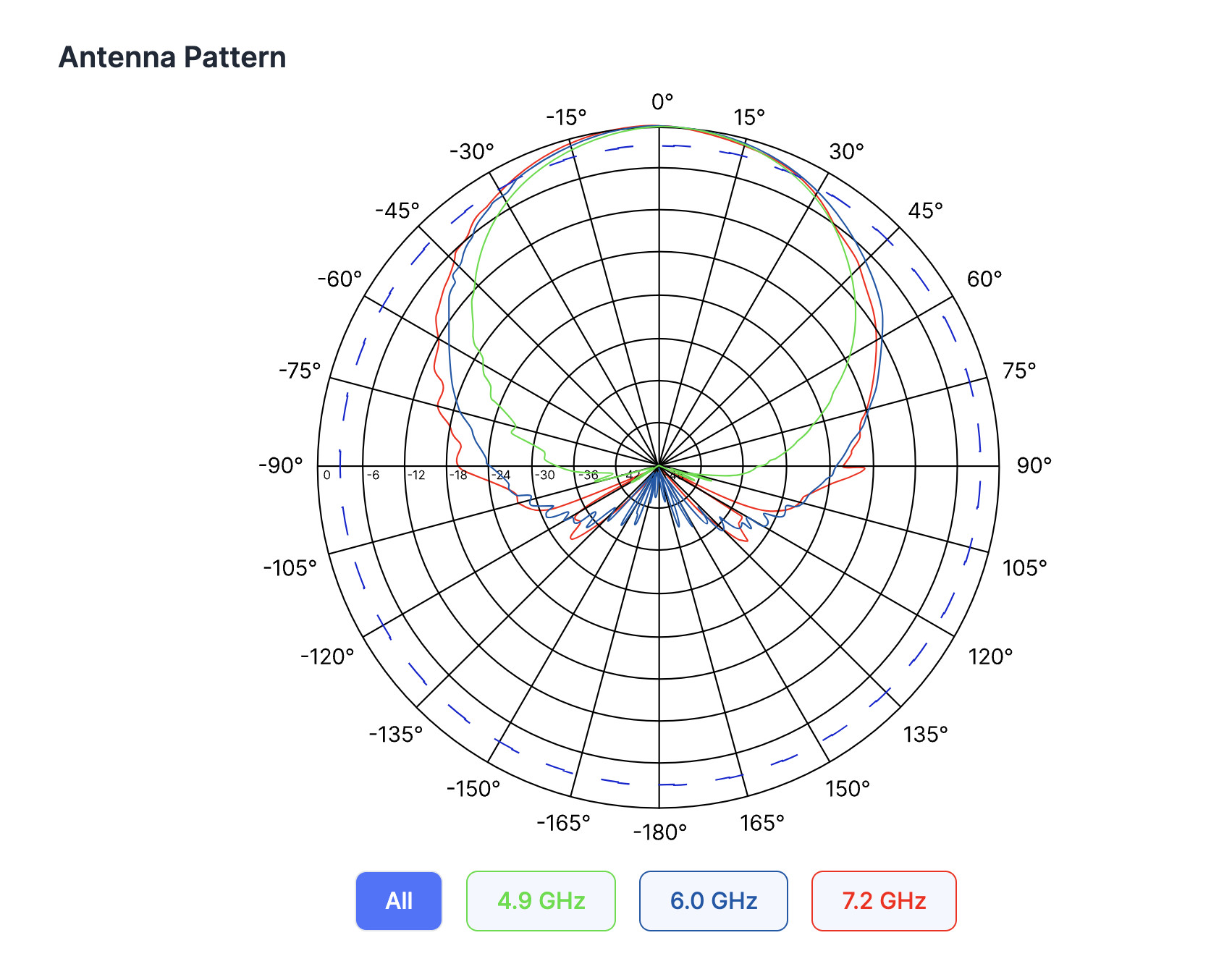

Azimuth Beam Width : 90°

Elevation Beam Width : 25°

Front-to-Back Ratio : 40 dB

Isolation : >30 dB

VSWR Max : 1.6

Connector : RP-SMA male pigtails

Contact Now

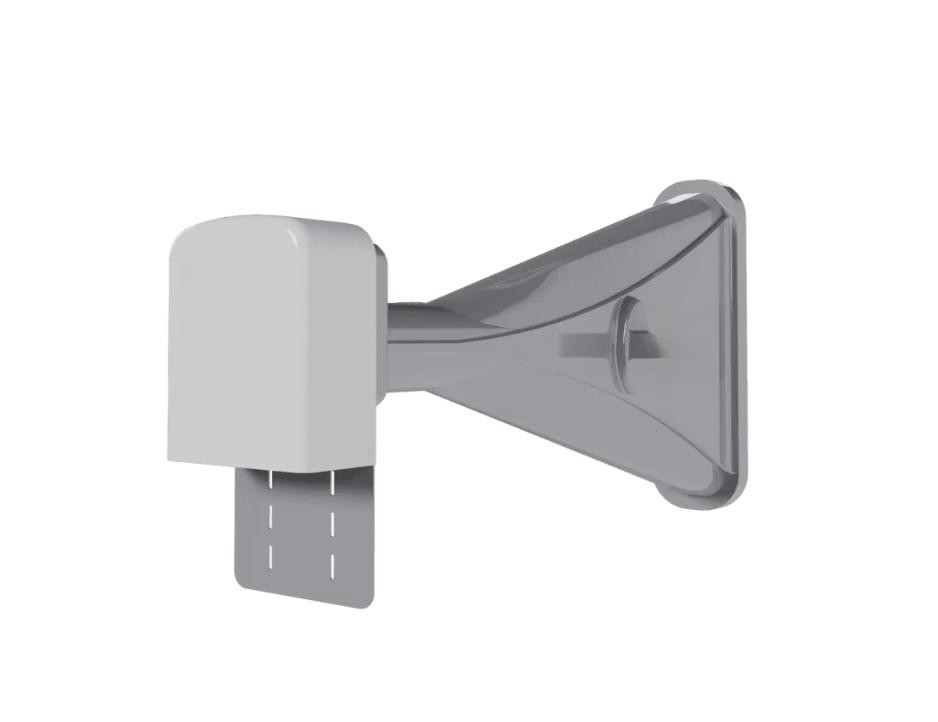

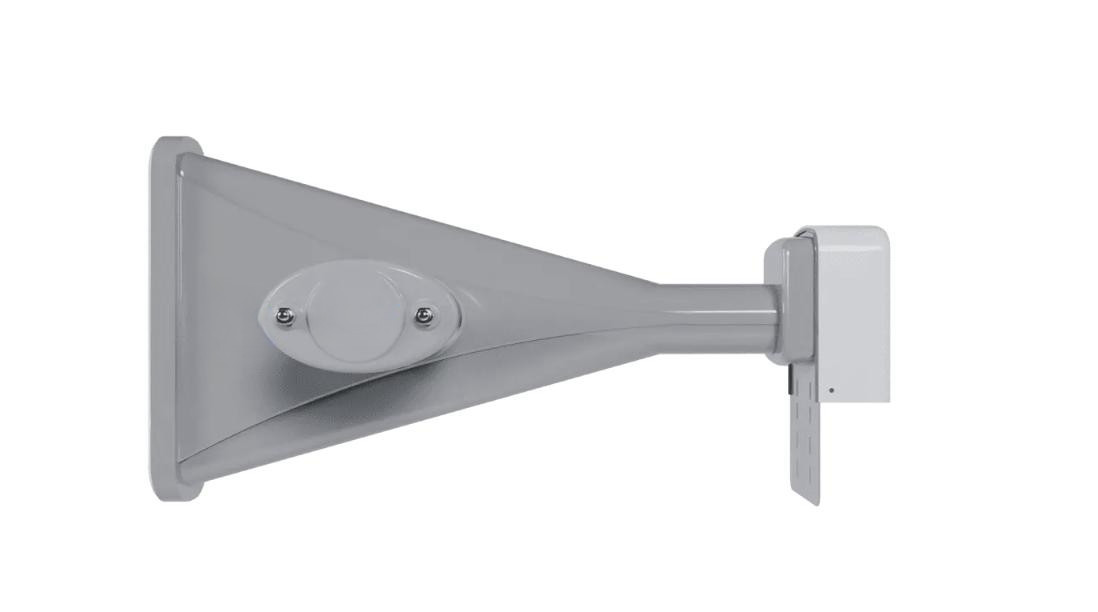

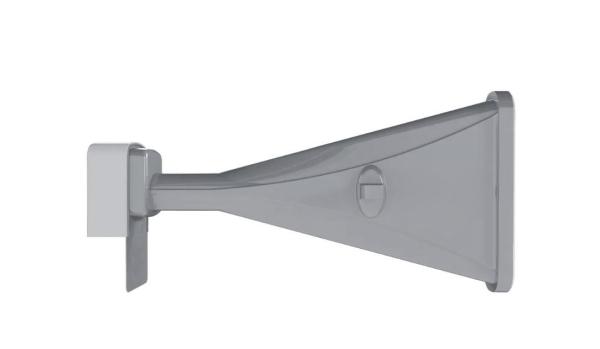

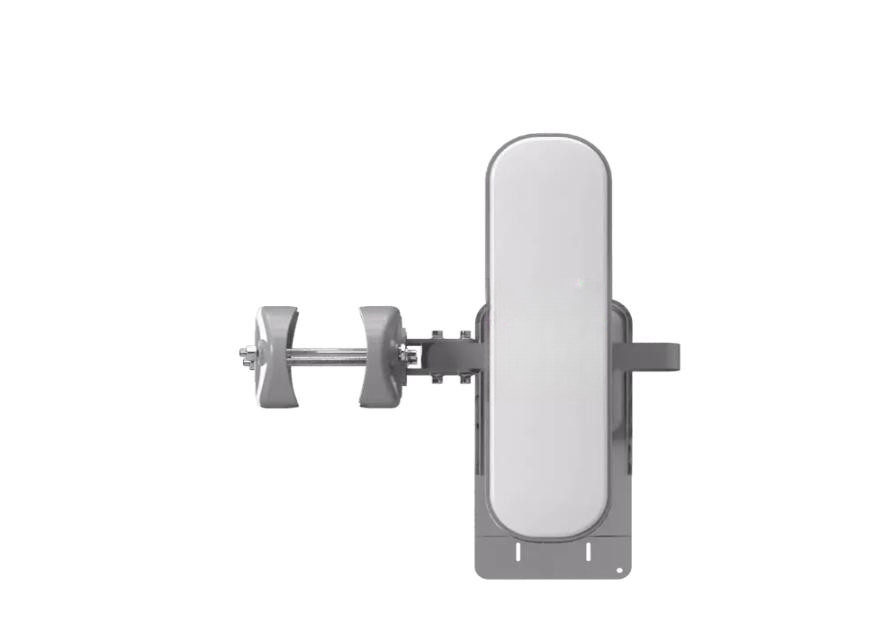

Wideband 6 GHz Asymmetrical 90° Horn Antenna

Wideband 6 GHz Asymmetrical 90° Horn Antenna
